Tungsten Carbide Polishing Wire Drawing Dies 0.12mm - 15.0mm

Tungsten Carbide Polishing Wire Drawing Dies 0.12mm - 15.0mm

1. Introduction

Wire drawing dies mainly have three materials:

TC(tungsten carbide),

PCD(Polycrystalline diamond)

ND(Natural Diamond)

Different material wire drawing dies draw different materials wire, such as: copper, steel, Al., carbon, etc., according to your requirement.

Different drawing angles for different materials.

2. Technical parameters

2.1.Diameter range: 0.12mm-15.0mm
2.2.Good wear resistance: HRA 89.0-93.0
2.3.Excellent polishing
2.4.Small friction coefficient
2.5.High thermal conductivity
2.6.Good corrosion resistance
2.7.Small adhesion
2.8.Roughness Rcan control with 0.05-0.80µm
2.9.Ovality: can control≤0.004mm
2.10.Cncentricity: can control ≤0.05mm
2.11.Perpendicularity: can control≤0.10mm
2.12.Casting:according to user requirements,it can choose brass,45#high quanlity carbon steel, stainless steel,etc

3. Photos

4. Our factory and introduction

Hejian Baohong Electrical Machinery Co., Ltd. was established in 2006. Our company is located in the Economic Development Zone of Hejian City, Hebei Province, has been the largest professional manufacturer for wire stranding machine and laying-up machine in North China.

Since 2006, relying on the care and support of our customers, Baohong Machinery has been devoted to the research and development of wire stranding machine and laying-up machine and has made great improvement. Now we have become the only one factory who can develop the production of the JLK rigid stranding machine series to be an assembly line processing in China, and we also have independently developed the JGB Bow skip stranding lines, the CGB Bow skip type cabling lines and the CLY High speed Cradle type Laying-up lines.

Now, Hejian Baohong Electrical Machinery Co., Ltd., covers an area of 10000 square meters, production workshop 8000 square meters. Our company has 60 employees, including 10 R & D staffs. Annual output value is over 10 million dollars at present,and has developed into one of the most important Stranding Machine Manufacturer in China.

Tungsten Carbide Wire Drawing Diamond Dies

Polishing Wire Drawing Dies

0.12mm Drawing Dies

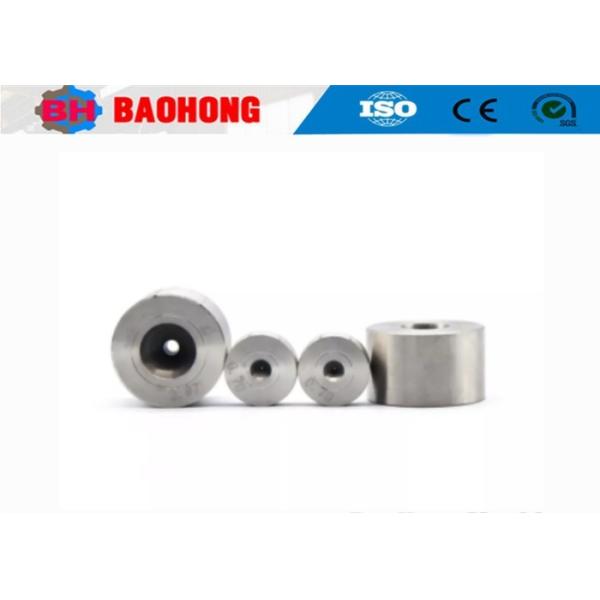

Tungsten Carbide Polishing Wire Drawing Dies 0.12mm - 15.0mm Images
